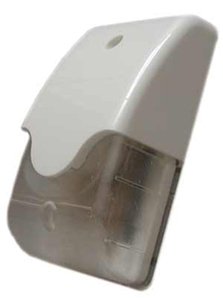

The Doberman Plus



Benefits & Features
Tamper switch on back of unit
Strobe can be independently wired from siren
Single tone piezo siren – warble
Strobe flashes at same rate as siren sounding
Mounts onto single gang box or can be surface mounted with two screws
CE Approved

Specifications
Sound output: 104 dB @ 12 VDC
Current draw: 140 mA @ 12 VDC; 40 mA at 12 VDC strobe only
Dimensions: 2.9” x 4.8” x 1.7”
Color: Ivory body with clear lens & red strobe
Material: UV-resistant, high impact polycarbonate plastic
Wiring: Red-positive (strobe & siren); Brown-positive (strobe only); Black-common
Blue & yellow wires: non-polarized tampers

Hear it: Warble

Doberman Plus Datasheet
